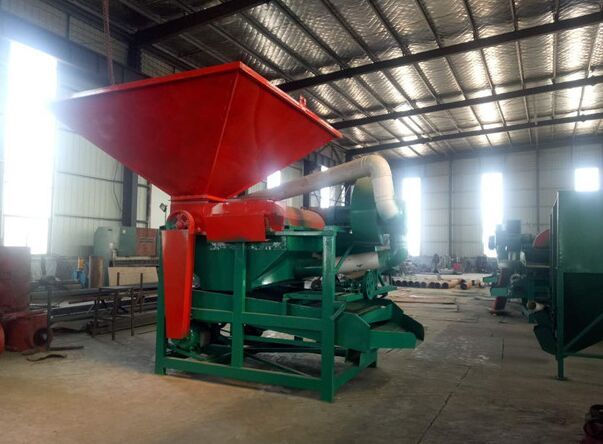

UGTL-1 Large Capacity Corn Threshing Machine

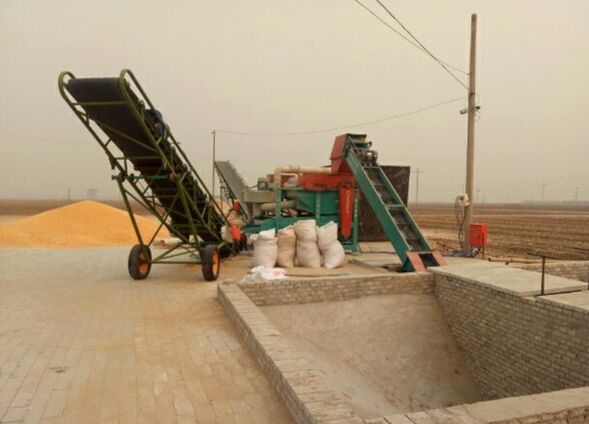

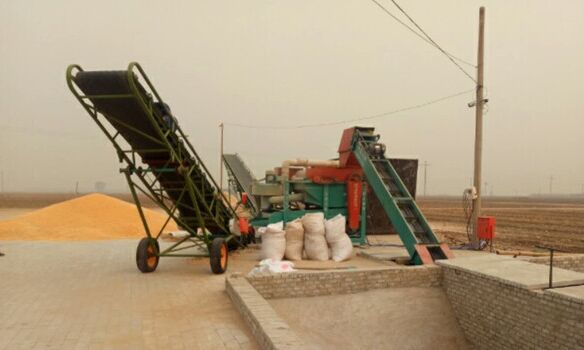

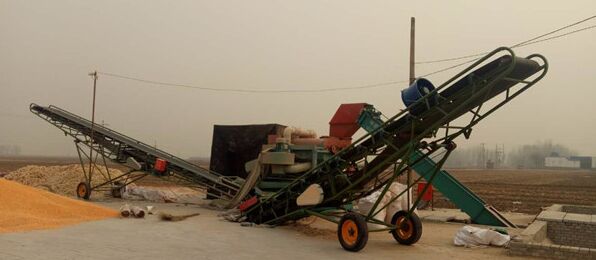

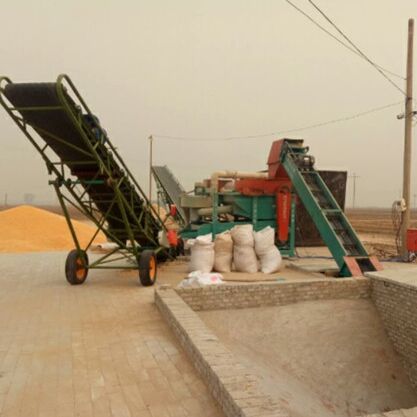

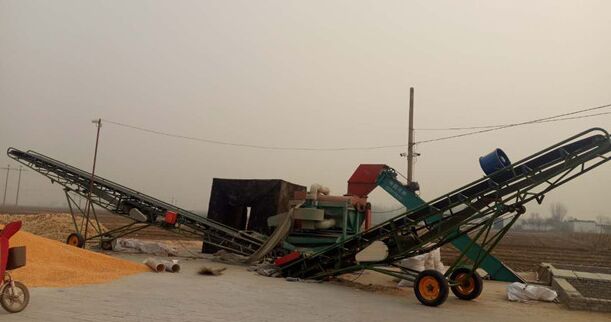

Our UGTL-1 large capacity Corn Threshing Machine mainly consists of:
1 unit of thresher
1 unit of feeding machine (this one can be replaced by your forklift)
2 units of conveyors

Corn Threshing Machine Main Features:
1. This large capacity maize thresher is developed by us based on improving the 6-shaft maize thresher.
2. Its shaft diameter: 540mm, length: 1.8m
3. It has independent air blower. There are 5 air suction points: two points at the feeding inlet, two points at the kernels discharging outlet, and one point at the cob discharging outlet, which can make the threshed corn much cleaner and make it easier to install other environment-friendly equipment.
4. The main engine and the motor are chain driven (not lost)



Corn Threshing Machine Main Technical Parameter:
Outline size: L*W*H= 3.3m*1.9m*1.5m
Sieve size: Length: 2.3m, Width: 1.5m
Capacity: wet corn 40-50T/Hour
Dry corn 60-70T/Hour
Main motor of the thresher: 18.5kw
Sieve motor: 2.2kw
Motor for secondary recovery: 1.1kw
Blower: 5.56kw
Conveyor: 4.0kw
Lift motor:1.1kw
Feeding machine: 3.0kw

After-Sales Service:
1. Technical Consultation:
If you have problems when using our machine, please read the instructions first.
If you can’t solve the problem, then don’t hesitate to contact us. Our engineer will provide customized technical support for you from each time!
2. Maintenance:
1)We would supply you with the maintenance guide from each time.
2)All accessories are guaranteed to be ready in your place within 72 hours.
3)All accessories required by customers should be unconditionally satisfied!
4)Please keep in mind that you should also do the related necessary work according to the instructions before and after each time of operation. Considerate maintenance brings you the longer service life of your machine.
3. One-Year Quality Guarantee:
The machine has one-year quality guarantee. During the guarantee period, if the main body is defective as the bad quality without any workers’ wrong operation, we should replace the parts for free.
